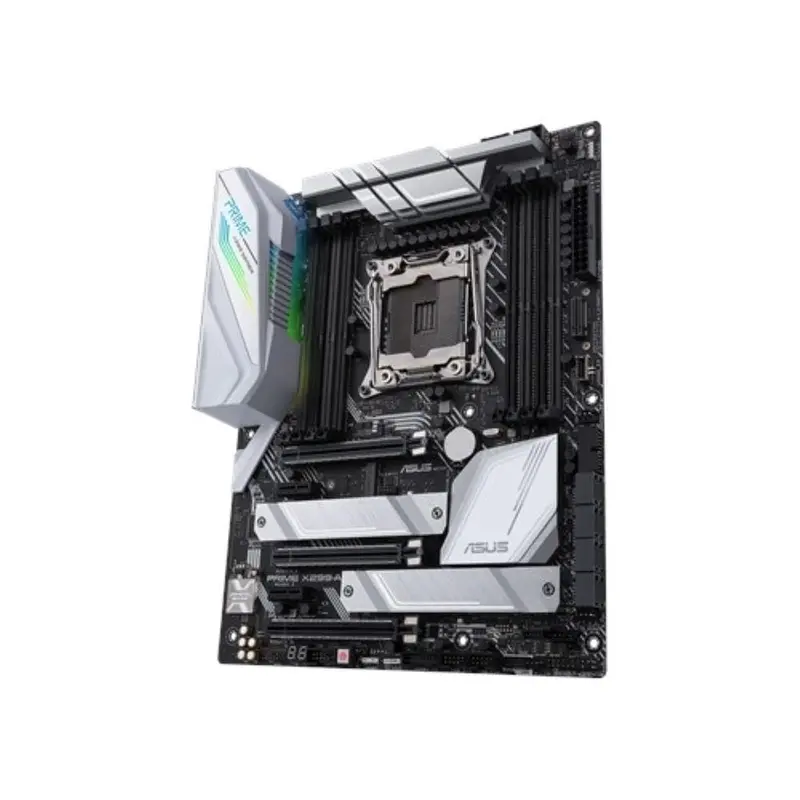

ASUS PRIME X299-A II ATX Motherboard – 3-Year Warranty

Description

Intel ATX motherboard LGA 2066 for Intel Core X-series processors, with AI Overclocking, 12 IR3555 power stages, DDR4 4266 MHz, Triple M.2, USB 3.2 Gen 2 Type-C and Aura Sync RGB lighting

• CPUIntel Socket 2066 Core X-Series Processors
  * The Intel Turbo Boost Max Technology 3.0 support depends on the CPU types
  * Refer to www.asus.com for CPU support list
• ChipsetIntel X299
• Memory(Intel Core i9 10000 X-Series CPU)
  8 x DIMM, Max. 256GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
  (Intel Core i9 9000/7000 and i7 9000 X-Series CPU)
  8 x DIMM, Max. 256GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
  Supports Intel Extreme Memory Profile (XMP)
  * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
• Multi-GPU SupportSupports NVIDIA Quad-GPU SLI Technology
  Supports NVIDIA 3-Way SLI Technology
  Supports NVIDIA 2-Way SLI Technology
  Supports AMD Quad-GPU CrossFireX Technology
  Supports AMD 3-Way CrossFireX Technology
• Expansion Slots48-Lane CPU-
  3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8)
  2 x PCIe 3.0/2.0 x1 *¹
  44-Lane CPU-
  3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8)
  2 x PCIe 3.0/2.0 x1 *¹
  28-Lane CPU-
  2 x PCIe 3.0/2.0 x16 (x16, x16/x8) *²
  2 x PCIe 3.0/2.0 x1 *¹
  1 x M.2 Socket 1 with E key, type 2230 for WIFI/BT devices support PCIE/USB mode*
  * The Wi-Fi E key shares bandwidth with PCIEX1_1.
  * The Wi-Fi/BT module is purchased separately
• StorageIntel X299 Chipset :
  1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*³
  1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*⁴
  8 x SATA 6Gb/s port(s)*⁵
  Support Raid 0, 1, 5, 10
  Intel Rapid Storage Technology supports
  (Intel Core i9 10000 X-Series CPU) :
  2 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
  Support Raid 0, 1, 5, 10
  Intel Rapid Storage Technology Enterprise supports
  (Intel Core i9 9000/7000 and i7 9000 X-Series CPU) :
  1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
  Support Raid 0, 1, 5, 10
  Intel Rapid Storage Technology 15 support
  Intel Optane Memory Ready *⁶
• LANIntel I219V, 1 x Gigabit LAN
  ASUS Turbo LAN Utility
  ASUS LAN Guard
• AudioRealtek S1220A 8-Channel High Definition Audio CODEC
  – Power pre-regulator reduces power input noise to ensure consistent performance
  – Impedance sense for front and rear headphone outputs
  – Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
  – Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
  Audio Feature :
  – DTS >collection.
