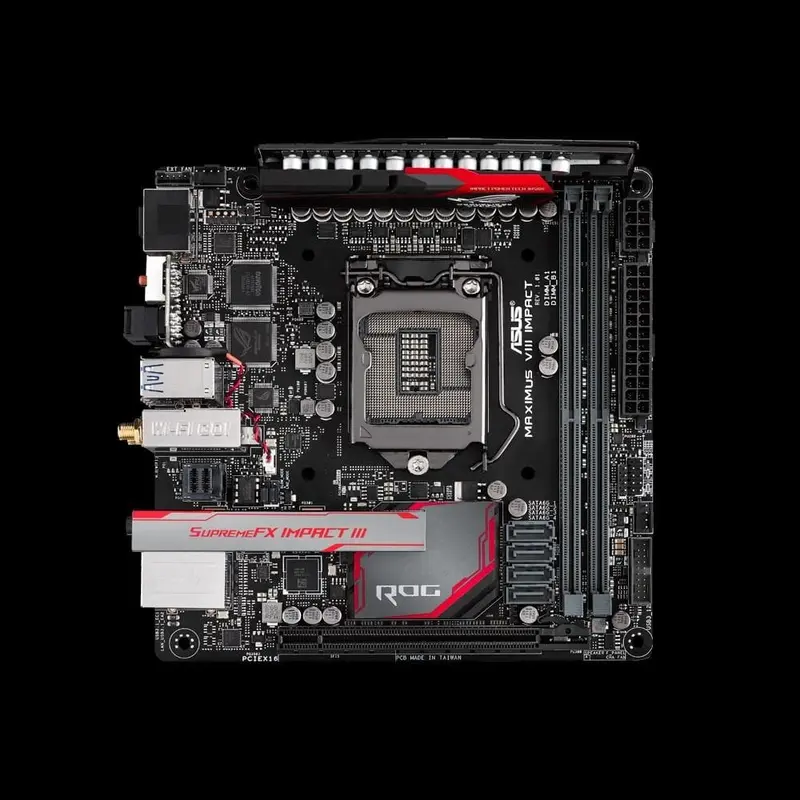

ASUS MAXIMUS VIII IMPACT Z170 Mini-ITX Motherboard – 3-Year Warranty

Description

Most powerful Z170 mini-ITX board with full-scale power, discrete audio and better upgradability

• CPUIntel Socket 1151 for 7^th/6^th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors
  Supports Intel 14 nm CPU
  Supports Intel Turbo Boost Technology 2.0
  * The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
  * Refer to www.asus.com for CPU support list
• ChipsetIntel Z170
• Memory2 x DIMM, Max. 32GB, DDR4 4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3733(O.C.)/3600(O.C.)/3500(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory
  Dual Channel Memory Architecture
  Supports Intel Extreme Memory Profile (XMP)
  * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
• GraphicIntegrated Graphics Processor- Intel HD Graphics support
  – Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz
  Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
• Expansion Slots1 x PCIe 3.0/2.0 x16 (x16 mode, black)
• StorageIntel Z170 chipset :
  1 x U.2 port, black,
  4 x SATA 6Gb/s port(s), gray,
  Support Raid 0, 1, 5, 10
  Intel Rapid Storage Technology supports*¹
  Supports Intel Smart Response Technology*¹
• LANIntel I219V, 1 x Gigabit LAN Controller(s), GameFirst technology
  Intel LAN- Dual interconnect between the Integrated LAN controller and Physical Layer (PHY)
  Anti-surge LANGuard
• Wireless Data NetworkWi-Fi 802.11 a/b/g/n/ac
  Supports dual band frequency 2.4/5 GHz
  Supports MU-MIMO
• BluetoothBluetooth V4.1
• AudioROG SupremeFX Impact III 5.1-channel High Definition Audio CODEC
  – Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
  – SupremeFX Shielding Technology
  – ESS ES9023P
  – 2VRMS Headphone Amp into (32-600Ohms)
  – Front panel audio connector (AAFP)
  Audio Feature :
  – Gold-plated jacks
  – DTS Connect
  – Optical S/PDIF out port(s) at back panel
  – Sonic SenseAmp
  – Sonic Studio II
  – Sonic Radar II
• USB PortsIntel Z170 chipset :
  6 x USB 3.0 port(s) (4 at back panel, blue, 2 at mid-board)
  Intel USB 3.1 controller :
  1 x USB 3.1 port(s) (1 at back panel, black, USB Type-C^TM)
  Intel USB 3.1 controller :
  1 x USB 3.1 port(s) (1 at back panel, red, Type-A)
• ROG Exclusive FeaturesSlow Mode
  ROG RAMCache
  Overwolf
  SupremeFX Impact III
  Start Button
  Reset Button
  LN2 Mode
  Impact Power III :
  – MicroFine Alloy Chokes
  – 10K Black Metallic Capacitors
  – IR3553 PowIRStage MOSFETs
  Mem TweakIt
  ProbeIt
  KeyBot II
  – One-click Overclocking
  – X.M.P.
  – DirectKey
  – ClrCMOS
  – Power On
  UEFI BIOS features :
  – O.C. Profile
  – GPU.DIMM Post
  – Tweakers’ Paradise
  – ROG SSD Secure Erase
  – Graphic Card Information Preview
  ROG RAMDisk
  Extreme Tweaker
• Special FeaturesOC Design – ASUS PRO Clock Technology
  – Full BCLK range for extreme overclocking performance
  5-Way Optimization by Dual Intelligent Processors 5
  – 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 3, and Turbo App
  ASUS Wi-Fi GO!
  ASUS Exclusive Features :
  – AI Suite 3
  – Ai Charger+
  – USB 3.1 Boost
  – Disk Unlocker
  – Mobo Connect
  – PC Cleaner
  Remote Entertainment
  – Media Streamer
  – HyStream
  ASUS EZ DIY :
  – ASUS CrashFree BIOS 3
  – ASUS EZ Flash 3
  – ASUS USB BIOS Flashback
  – Push Notice
  ASUS Q-Design :
  – ASUS Q-Shield
  – ASUS Q-Code
  – ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
  – ASUS Q-Slot
  – ASUS Q-DIMM
  Overclocking Protection :
  – ASUS C.P.R.(CPU Parameter Recall)
• Operating System SupportWindows 10
  Windows 8.1
  Windows 7
• Back I/O Ports1 x HDMI
  1 x LAN (RJ45) port(s)
  1 x USB 3.1 Gen 2 (black)USB Type-C^TM,
  1 x USB 3.1 Gen 2 (red)Type-A
  4 x USB 3.1 Gen 1 (blue)
  1 x Optical S/PDIF out
  3 x Audio jack(s)
  1 x Clear CMOS button(s)
  2 x Wi-Fi antenna port(s)
  1 x USB BIOS Flashback Button(s)
  1 x Q-Code LED
  1 x Start Button
  1 x Reset Button
• Internal I/O Ports1 x U.2 port
  1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
  4 x SATA 6Gb/s connector(s)
  1 x CPU Fan connector(s) (4 -pin)
  1 x Chassis Fan connector(s) (4 -pin)
  1 x 24-pin EATX Power connector(s)
  1 x 8-pin ATX 12V Power connector(s)
  1 x Front panel audio connector(s) (AAFP)*²
  1 x ProbeIt Measurement Points
  1 x Thermal sensor connector(s)
  1 x 5-pin EXT_FAN(Extension Fan) connector
  1 x LN2 Mode jumper(s)
  1 x Slow Mode jumper(s)
  1 x SupremeFX Impact III connector
  1 x M.2 socket pre-installed with a Wi-Fi/Bluetooth module
  1 x System panel connector
• AccessoriesUser’s manual
  ASUS Q-Shield
  4 x SATA 6Gb/s cable(s)
  1 x CPU installation tool
  1 x Supporting DVD
  1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
  1 x Fan Extension Card (3 x 4-pin fan out)
  1 x Fan Extension card screw pack
  1 x 12 in 1 ROG Cable Label(s)
  ROG Fan Label
  1 x 5-pin to 5-pin cable
  1 x Panel cable
  1 x Thermistor cable(s)
• BIOS1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, F9 Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information.
• ManageabilityWfM2.0, DMI3.0, WOL by PME, PXE
• Support DiscDrivers
  ROG GameFirst technology
  ROG RAMDisk
  ROG RAMCache
  ROG CPU-Z
  ROG Mem TweakIt
  Overwolf
  Keybot II
  Kaspersky Anti-Virus
  DAEMON Tools Pro Standard
  ASUS WebStorage
  ASUS Utilities
• Form FactorMini ITX Form Factor
  6.7 inch x 6.7 inch ( 17 cm x 17 cm )
• Note*1 This function will work depending on the CPU installed.
  *2 AAFP connector is built-in on the SupremeFX Impact III card
